The PC-3000 Express is a hardware-software solution intended for diagnosing, repairing and recovering data from damaged HDDs based on SATA (Serial ATA) and PATA (IDE) interfaces for numerous vendors (Seagate, Western Digital, Fujitsu, Samsung, Maxtor, Quantum, IBM (HGST), HITACHI, TOSHIBA), for various capacities (from 500 MB to 6 TB) and various form factors: 3.5" - desktop drives, 2.5" and 1.8" - laptop drives and 1.0" - portable drives with Compact Flash interface.

The PC-3000 Express coupled with the Data Extractor Express forms the PC-3000 Express Professional System that enables you to recover data from SATA, and PATA (IDE) HDDs. If you wish to repair these HDDs, you need only the PC-3000 Express, and for data recovery you need both the PC-3000 Express and the Data Extractor Express.

The PC-3000 Express hardware

The new powerful PC-3000 Express is a six-port tester-board which is inserted into a PCI-Express expansion slot. Six diagnostic ports are 4 SATA ports (data transfer speed up to 133 Mb/sec) and 2 PATA ports (speed up to 100 Mb/sec). The primary ports are SATA0 and SATA1 while SATA2 and SATA3 are switchable with the PATA ports (PATA0 and PATA1). You can connect four drives to the PC-3000 Express simultaneously - two SATA drives and two SATA or PATA drives, depending on your needs. Thus, you can work either with 4 SATA drives or 2 SATA and 2 PATA at the same time.

When developing the new PC-3000 Express system we used our “know-how”, all gained experience and requests from our users who work in data recovery. As a result, we have achieved a significant increase in performance and efficiency, making this professional product the best tool for the contemporary data recovery industry.

Processing modes:

• SATA x4 — UDMA133, UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0
• PATA x2 - UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0

All ports are separable and independent. Performance is maintained almost at the same level even when all ports have simultaneous loads. This has become possible because of efficient use of hardware buffering of the data transferred from the 4 UDMA ports through the PCI-Express 4-channel bus.

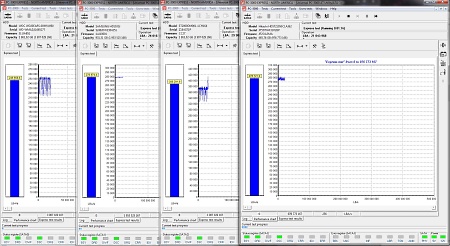

                                                         The performance for four connected HDD drives

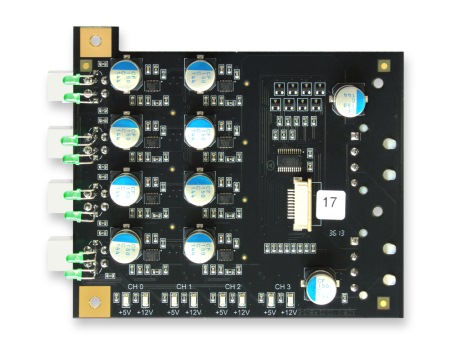

Power supply adapter:

A four-channel power supply adapter is located on the board controller and protects the HDDs from overvoltage and current overloading. In case of any of these events, the HDD power supply is switched off automatically.

In addition, every channel has a feedback circuit with a special management software that controls the supplying voltage values +5V, +12V and informs the user about any issues with the feed circuit.

                                                                          Power adapter

Resource Management of the PC-3000 Express board

One of the most important new features of the PC-3000 Express is to allow for launching of the PC-3000 utility and the Data Extractor tasks as separate OS processes. The "PC-3000 Resource manager" software makes using the new PC-3000 Express very easy and effective. The "PC-3000 Resource manager" manages port and related process activity, controls the status of the ports, checks process conditions and kills processes when it is necessary.

Once a process is started it can use any number of PC-3000 Express ports. For instance, four processes can be launched for each port or two processes can be launched: the first one works with three ports and the second one only with one port and so on.

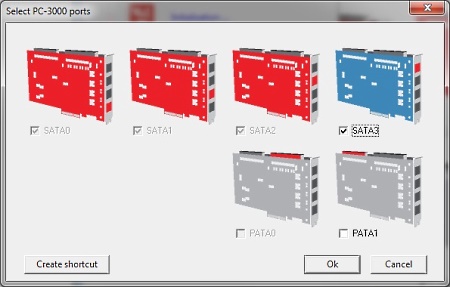

                                                    Port selection process in the PC-3000 Express

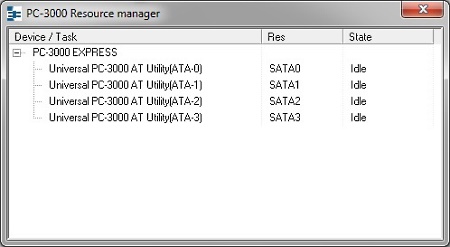

                                                            PC-3000 Express Resource Manager

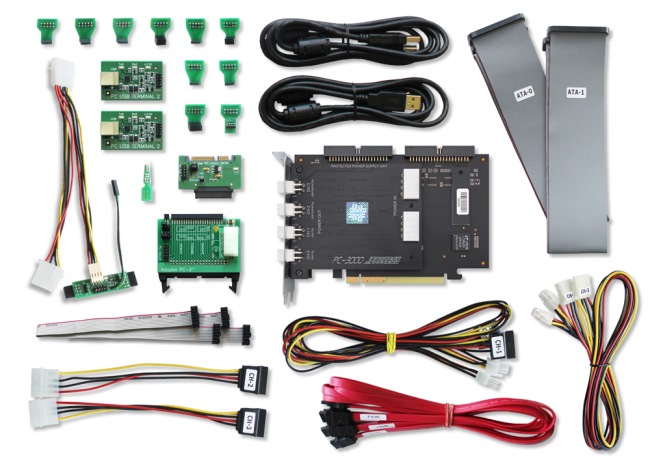

The PC-3000 Express Kit

PC-3000 Express controller PC-USB-TERMINAL adapter PC-2" adapter SATA- micro SATA adapter MX-SAFE adapter PC-FUJ.SATA adapter PC-QUANTUM adapter PC-SAMSUNG adapter PC-SEAG.SATA adapter PC-SEAGATE adapter PC-TOSH.SATA adapter

ATCS, ATDA probe unlock USB 2.0 Defender cable SATA RAID edition (80 cm) cable UDMA80 (80 cm) flat able IDC10 (30 cm) cable MX-SAFE power cable SATA HDD (80 cm) power cable PATA HDD (70 cm) power cable PATA-SATA (10 cm) power adapter PC-3000 Express software, resource database User manual
